Sound Solution Reference 400CF - FREE SHIPPING - OEM Audio+ (FRZ-REF400-1300DS)

Details

• Product ID:

  FRZ-REF400-1300DS

• Description:

  With it's premium sound performance, the Reference Series by OEM Audio Plus is a testimony that a car audio system doesn't have to look loud to make an impression. The Reference 400CF is unmatched clarity in a minimalist package, fashioned specifically for your FR-S both in design and acoustics.

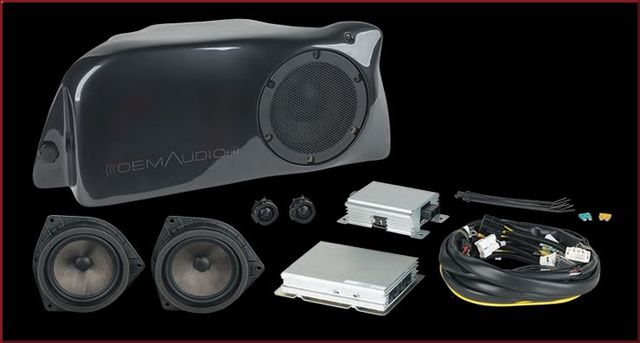

  KIT INCLUDES:

  • Multi-Channel 32-Bit DSP Power Amplifier w/ O+ Signature sound
  • Dedicated Subwoofer Amplifier
  • Vehicle-Specific 8" Subwoofer System
  • Quick-Sync Wiring Harness
  • Front 1" Soft Dome Tweeter
  • 6.5" Midrange Woofer (CF)

  MULTI-CHANNEL 32-BIT DSP POWER AMPLIFIER

  • 360 Watts RMS (Continuous / @ 2-ohms)
  • Advanced Cirrus-Logic 32-Bit Digital Signal Processing
  • Real-time system diagnosis for trouble-free operation
  • Meets all OEM standards including AEC-Q100

  DEDICATED SUBWOOFER AMPLIFIER

  • 130 Watts RMS (Continuous / @ 1-ohms)
  • Low Voltage / Short Circuit Protection

  O+ SIGNATURE TUNING - Unmatched Sound Reproduction - Liken to a finely tuned home theatre or studio headphones - Guaranteed

  • Tuned specifically for the in-vehicle acoustics of Your BRZ / FR-S and output characteristics of the head unit (Factory or Aftermarket)
  • Digital Signal Processing (DSP): clean, clear and crisp sound is achieved w/o requiring a massive power amplifier.
  • Amplifier converts analog signals into digital signals by way of four analog- to-digital (A/D) converters
  • DSP maintains signal integrity and provides precision adjustment not possible with an analog signal

  FR-S SPECIFIC SUBWOOFER SYSTEM - Deep, non-localized low frequency reproduction that is felt as well as heard without compromising Your music's clarity.

  • 8" Dual Voice-Coil Woofer (1.2 + 1.2 ohms impedance)
  • Genuine Carbon Fiber Cone Woofer
  • 100W RMS (200 Peak)
  • Sensitivity 88.9dB (1 W,1M)
  • Frequency Response: 20 -1000 Hz
  • Mounts using existing vehicle mounting locations
  • 14 Liter Sealed Enclosure (The Ideal Air Volume)

  Choose your Preferred Bass Reproduction:

  • The Reference 400CF allows you to select the output level of your O+ subwoofer. All our EQ options offer OEM Audio PLus' Signature Sound Reproduction. We will never add bass at the cost of accurate sound reproduction.
  • Balanced: Detailed bass reproduction. Equal bass output from the front door woofers and subwoofer.
  • Full: Rich bass sound. Deep bass that is felt without the loss of clarity. The Full EQ helps compensate for the canceling drone of an Aftermarket exhaust.
  • Robust: Max impact sound. Makes the subwoofer stand out.

  FRONT 1" SOFT DOME TWEETER

  • Silk soft dome
  • 4-ohms
  • 50W RMS (100 Peak)
  • Sensitivity 91.8 dB (1 W,1M)
  • Frequency Response: 3,000-20,000 Hz
  • Built-in 6db/Oct. High Pass Filter
  • Neodymium Magnet Structure

  FRONT 6.5" WOOFER

  • Genuine Carbon Fiber Cone
  • 2-ohms
  • 50W RMS (100 Peak)
  • Sensitivity 86.5 dB (1 W,1M)
  • Frequency Response: 55-14,000 Hz

  Plug and Play Installation

  • Quick-Sync "Plug & Play" Wiring Harness
  • Reference Adapter

  Installation Instructions: OEM Audio Plus Sound Reference 400CF
